AOZ13287DI-01 Datasheet PDF - Alpha & Omega Semiconductors 20V Diode Smart Protection Specs

AOZ13287DI-01 - 20V Diode Smart Protection

Datasheet Summary

Description

The AOZ13287DI-01 is a protection switch intended for applications that require reverse current protection.

The input operating voltage range is between 3.4V and 22V, and both VIN and VOUT terminals are rated at 28V Absolute Maximum.

Features

13A continuous sink current.
22.5A peak current for 10 ms @ 2% duty cycle.
9mΩ typical ON resistance.
3.4V to 22V operating input voltage.
VIN and VOUT are rated 28V Abs max.
Ideal Diode True Reverse Current Blocking (IDTRCB).
Programmable Soft-Start.
VIN Under-Voltage Lockout (UVLO).
VIN Over-Voltage Lockout (OVLO).
Thermal Shutdown Protection.
Short Circuit Protection.
Integrated TVS di.

Datasheet Details

Part number	AOZ13287DI-01
Manufacturer	Alpha & Omega Semiconductors
File Size	4.82 MB
Description	20V Diode Smart Protection
Datasheet	AOZ13287DI-01 Datasheet

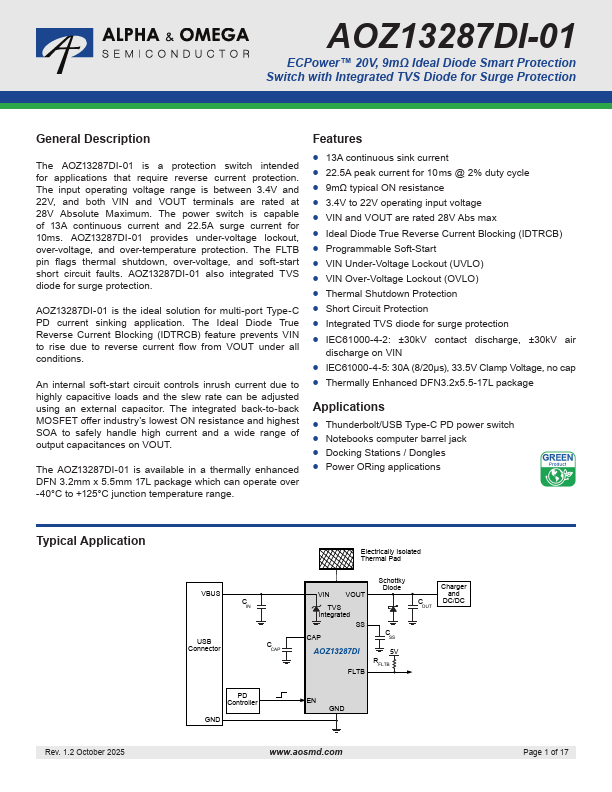

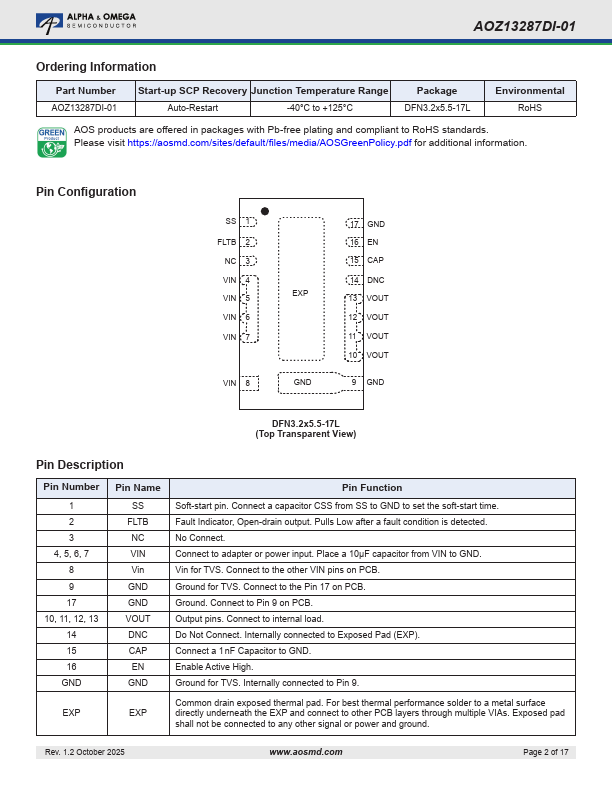

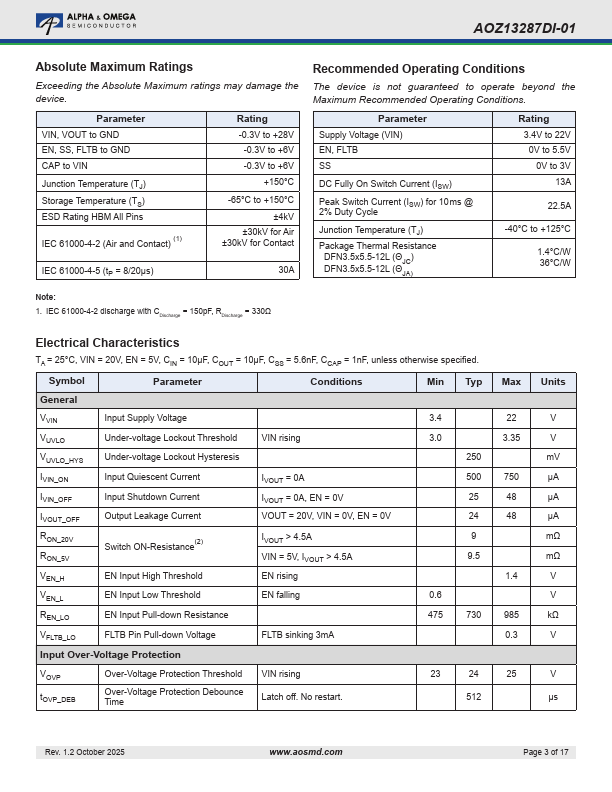

Additional preview pages of the AOZ13287DI-01 datasheet.

📁 Similar Datasheet

AOZ1015 - EZBuck 1.5A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1017 - EZBuck 3A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1018 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1019 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1020 - 2A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1021 - EZBuck 3A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1024D - EZBuck 4A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ3010PI - 2A Synchronous Buck Regulator (ALPHA & OMEGA)

AOZ3011PI - 3A Synchronous Buck Regulator (ALPHA & OMEGA)

AOZ3017 - 4A Synchronous Buck Regulator (ALPHA & OMEGA)

Full PDF Text Transcription

Click to expand full text

AOZ13287DI-01 ECPower™ 20V, 9mΩ Ideal Diode Smart Protection Switch with Integrated TVS Diode for Surge Protection General Description The AOZ13287DI-01 is a protection switch intended for applications that require reverse current protection. The input operating voltage range is between 3.4V and 22V, and both VIN and VOUT terminals are rated at 28V Absolute Maximum. The power switch is capable of 13A continuous current and 22.5A surge current for 10ms. AOZ13287DI-01 provides under-voltage lockout, over-voltage, and over-temperature protection. The FLTB pin flags thermal shutdown, over-voltage, and soft-start short circuit faults. AOZ13287DI-01 also integrated TVS diode for surge protection. AOZ13287DI-01 is the ideal solution for multi-port Type-C PD current sinking application.
