AOZ2297QI-05 - 5.1V / 18A Output Synchronous Regulator

Alpha & Omega Semiconductors

Datasheet Details

Part number	AOZ2297QI-05
Manufacturer	Alpha & Omega Semiconductors
File Size	4.13 MB
Description	5.1V / 18A Output Synchronous Regulator
Datasheet	AOZ2297QI-05-AlphaOmegaSemiconductors.pdf

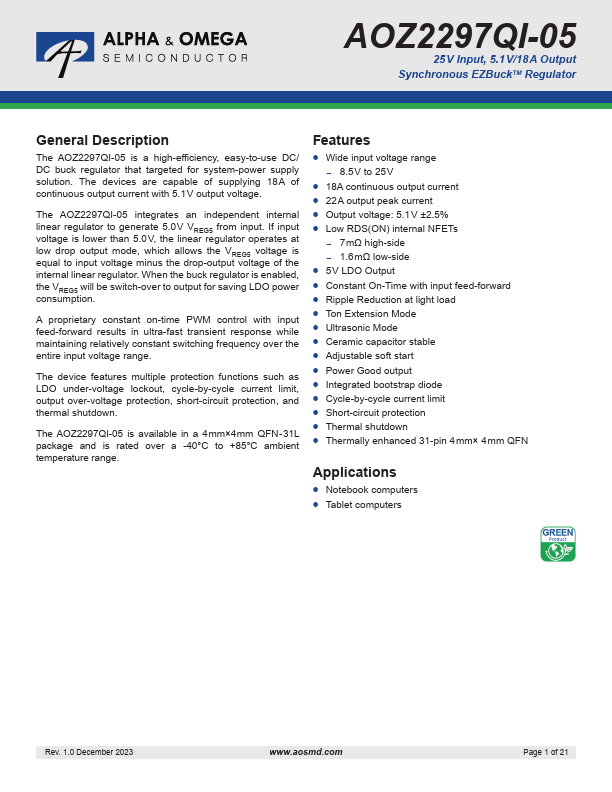

The AOZ2297QI-05 is a high-efficiency, easy-to-use DC/ DC buck regulator that targeted for system-power supply solution.

multiple protection functions such as LDO under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2297QI-05 is available in a 4 mm×4 mm QFN - 31L package and is rated over a -40°C to +85°C ambient temperature range. Features.
Wide input voltage range - 8.5 V to 25 V.
18A continuous output current.
22 A output peak current.
Output voltage: 5.1 V ±2.5%.
Low RDS(ON) inte.
