AOZ3015AI

3A Synchronous Buck Regulator

AOZ3015AI Features

* 4.5 V to 18 V operating input voltage range

* Synchronous Buck: 65 mΩ internal high-side switch and 30 mΩ internal low-side switch (at 12 V)

* PEM (pulse energy mode) enables >80% efficiency with IOUT = 10 mA (VIN = 12 V, VOUT = 5 V)

* Up to 95 % efficiency

* Internal soft star

AOZ3015AI General Description

The AOZ3015AI is a high efficiency, easy to use, 3 A synchronous buck regulator. The AOZ3015AI works from 4.5 V to 18 V input voltage range, and provides up to 3 A of continuous output current with an output voltage adjustable down to 0.8 V. The AOZ3015AI comes in a SO-8 package and is rated over a .

AOZ3015AI Datasheet (1.28 MB)

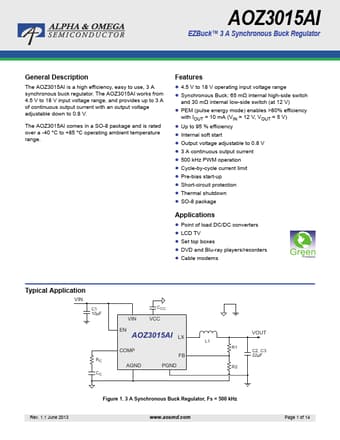

Preview of AOZ3015AI PDF

Datasheet Details

Part number:

AOZ3015AI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

1.28 MB

Description:

3a synchronous buck regulator.
