AOZ3015PI

3A Synchronous Buck Regulator

AOZ3015PI Features

* 4.5 V to 18 V operating input voltage range

* Synchronous Buck: 85 mΩ internal high-side switch and 50 mΩ internal low-side switch (at 12 V)

* PEM (pulse energy mode) enables >85% efficiency with IOUT = 10 mA (VIN = 12 V, VOUT = 5 V)

* 350 µA supply current under typical applicatio

AOZ3015PI General Description

The AOZ3015PI is a high efficiency, easy to use, 3 A synchronous buck regulator. The AOZ3015PI works from 4.5 V to 18 V input voltage range, and provides up to 3 A of continuous output current with an output voltage adjustable down to 0.8 V. The AOZ3015PI comes in an exposed pad SO-8 package and is .

AOZ3015PI Datasheet (460.48 KB)

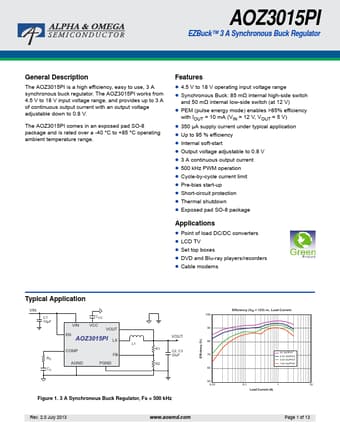

Preview of AOZ3015PI PDF

Datasheet Details

Part number:

AOZ3015PI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

460.48 KB

Description:

3a synchronous buck regulator.
