AOZ52178QI High-Performance Smart Power Stage

📥 Download Datasheet Datasheet Preview Page 1

Description

AOZ52178QI High-Current, High-Performance Smart Power Stage General .
The AOZ52178QI is a general-purpose Smart Power Stage (SPS) consisting of two asymmetrical MOSFETs and an integrated driver for high current, high fre.

📥 Download Datasheet

Preview of AOZ52178QI PDF

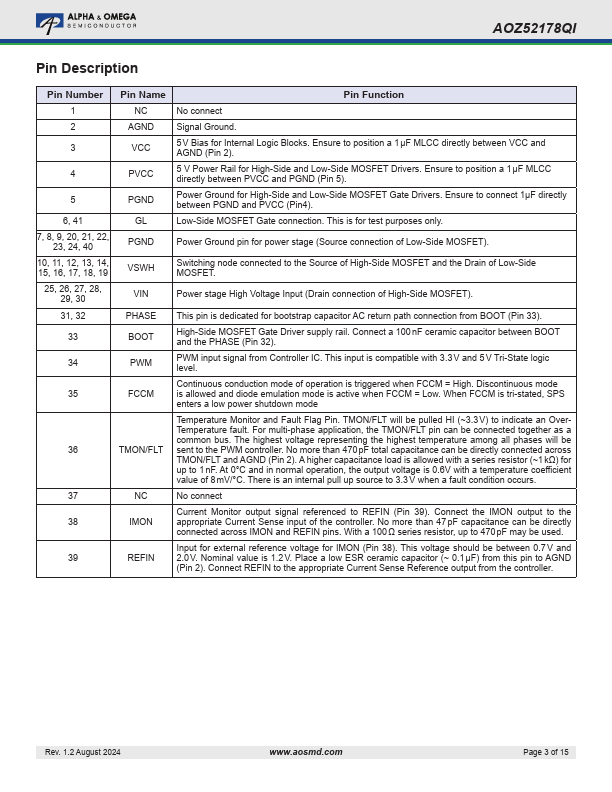

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AOZ52178QI
Manufacturer
Alpha & Omega Semiconductors
File Size
2.09 MB
Datasheet
AOZ52178QI-AlphaOmegaSemiconductors.pdf
Description
High-Performance Smart Power Stage

Features

* 3 V to 20 V power supply range
* 90 A continuous output current - Up to 100 A for 10 ms instantaneous current - Up to 150 A for 10 µs instantaneous current
* Optimized for switching frequency up to 1.5 MHz
* Integrated current monitor (5 mV/A) with typical 5% accura

Applications

* Server systems
* High end CPU/GPU Power Stage
* Communications Infrastructure Typical Application FCCM PWM Controller PWM TMON Driver Logic HS Driver and IMON Delay REFIN AGND LS Driver VIN BOOT CBOOT PHASE VSWH GL VCC PVCC PGND C VCC 5V C PVCC 3 V ~ 20 V
