AOZ8802ADI - Ultra-Low Capacitance TVS Diode Array

Alpha & Omega Semiconductors

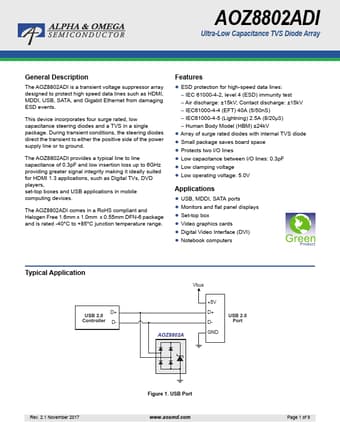

AOZ8802ADI Datasheet Preview — Preview of AOZ8802ADI PDF

Datasheet Details

Part number	AOZ8802ADI
Manufacturer	Alpha & Omega Semiconductors
File Size	919.69 KB
Description	Ultra-Low Capacitance TVS Diode Array
Datasheet	AOZ8802ADI-AlphaOmegaSemiconductors.pdf

AOZ8802ADI Product details

Description

The AOZ8802ADI is a transient voltage suppressor array designed to protect high speed data lines such as HDMI, MDDI, USB, SATA, and Gigabit Ethernet from damaging ESD events.

Features

ESD protection for high-speed data lines:.
IEC 61000-4-2, level 4 (ESD) immunity test.
Air discharge: ±15kV; Contact discharge: ±15kV.
IEC61000-4-4 (EFT) 40A (5/50nS).
IEC61000-4-5 (Lightning) 2.5A (8/20μS).
Human Body Model (HBM) ±24kV.
Array of surge rated diodes with internal TVS diode.
Small package saves board space.
Protects two I/O lines.
Low capacitance between I/O lines: 0.3pF.
Low clamping voltage.
Low ope.
