AOZ8808DI - Ultra-Low Capacitance TVS Diode

Alpha & Omega Semiconductors

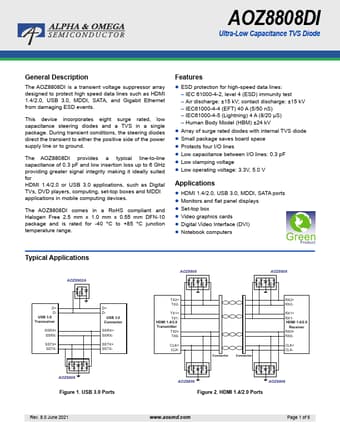

AOZ8808DI Datasheet Preview — Preview of AOZ8808DI PDF

Datasheet Details

Part number	AOZ8808DI
Manufacturer	Alpha & Omega Semiconductors
File Size	538.71 KB
Description	Ultra-Low Capacitance TVS Diode
Datasheet	AOZ8808DI-AlphaOmegaSemiconductors.pdf

AOZ8808DI Product details

Description

The AOZ8808DI is a transient voltage suppressor array designed to protect high speed data lines such as HDMI 1.4/2.0, USB 3.0, MDDI, SATA, and Gigabit Ethernet from damaging ESD events.

Features

ESD protection for high-speed data lines:.
IEC 61000-4-2, level 4 (ESD) immunity test.
Air discharge: ±15 kV; contact discharge: ±15 kV.
IEC61000-4-4 (EFT) 40 A (5/50 nS).
IEC61000-4-5 (Lightning) 4 A (8/20 µS).
Human Body Model (HBM) ±24 kV.
Array of surge rated diodes with internal TVS diode.
Small package saves board space.
Protects four I/O lines.
Low capacitance between I/O lines: 0.3 pF.
Low clamping voltage.
