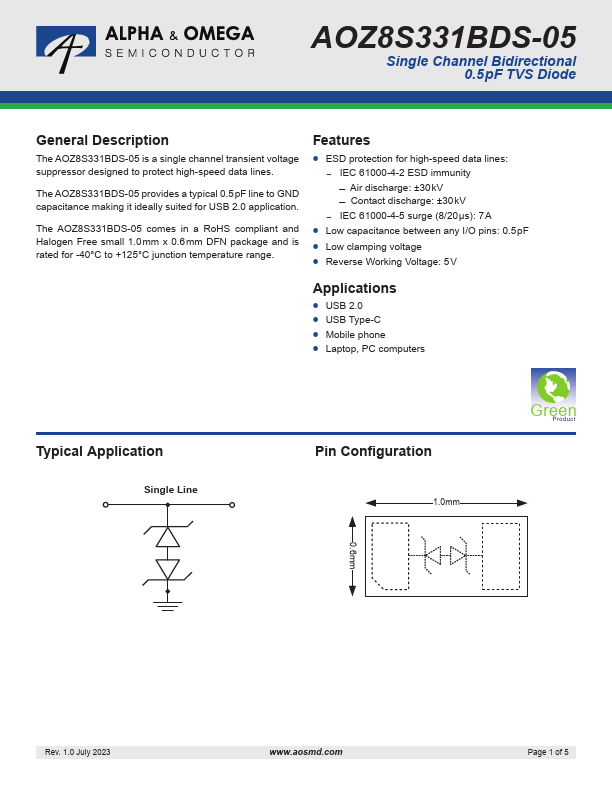

AOZ8S331BDS-05 Single Channel Bidirectional 0.5pF TVS Diode

The AOZ8S331BDS-05 is a single channel transient voltage suppressor designed to protect high-speed data lines. The AOZ8S331BDS-05 provides a typical 0.5 pF line to GND capacitance making it ideally suited for USB 2.0 application. The AOZ8S331BDS-05 comes in a RoHS compliant and Halogen Free small 1..

AOZ8S331BDS-05 Features

* ESD protection for high-speed data lines: - IEC 61000-4-2 ESD immunity ̶ Air discharge: ±30 kV ̶ Contact discharge: ±30 kV - IEC 61000-4-5 surge (8/20 μs): 7 A

* Low capacitance between any I/O pins: 0.5 pF

* Low clamping voltage

* Reverse Working Voltage: 5 V Ap

AOZ8S331BDS-05-AlphaOmegaSemiconductors.pdf

AOZ8S331BDS-05 Datasheet Preview — Preview of AOZ8S331BDS-05 PDF

Datasheet Details

Part number:

AOZ8S331BDS-05

Manufacturer:

Alpha & Omega Semiconductors

File Size:

539.63 KB

Description:

Single channel bidirectional 0.5pf tvs diode.
