AOZ8S333UDS-05 - 1-Channel Unidirectional Ultra-Low Capacitance TVS

Alpha & Omega Semiconductors

AOZ8S333UDS-05 Datasheet Preview — Preview of AOZ8S333UDS-05 PDF

Datasheet Details

Part number	AOZ8S333UDS-05
Manufacturer	Alpha & Omega Semiconductors
File Size	430.84 KB
Description	1-Channel Unidirectional Ultra-Low Capacitance TVS
Datasheet	AOZ8S333UDS-05-AlphaOmegaSemiconductors.pdf

AOZ8S333UDS-05 Product details

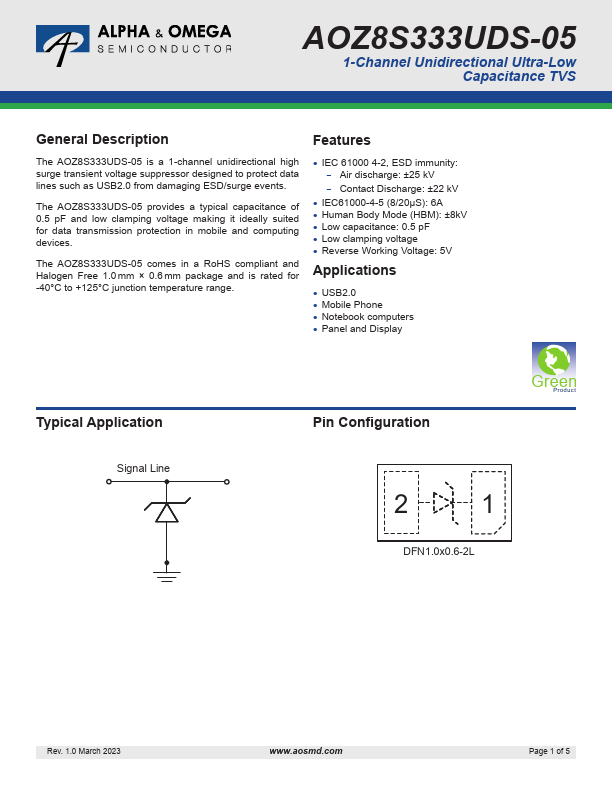

Description

The AOZ8S333UDS-05 is a 1-channel unidirectional high surge transient voltage suppressor designed to protect data lines such as USB2.0 from damaging ESD/surge events.

Features

-.
IEC 61000 4-2, ESD immunity: Air discharge: ±25 kV - Contact Discharge: ±22 kV.
IEC61000-4-5 (8/20μS): 6A.
Human Body Mode (HBM): ±8kV.
Low capacitance: 0.5 pF.
Low clamping voltage.
Reverse Working Voltage: 5V.
