AOZ8S501BDS-05 - 1-Channel Bidirectional High-Surge TVS

Alpha & Omega Semiconductors

AOZ8S501BDS-05 Datasheet Preview — Preview of AOZ8S501BDS-05 PDF

Datasheet Details

Part number	AOZ8S501BDS-05
Manufacturer	Alpha & Omega Semiconductors
File Size	384.07 KB
Description	1-Channel Bidirectional High-Surge TVS
Datasheet	AOZ8S501BDS-05-AlphaOmegaSemiconductors.pdf

AOZ8S501BDS-05 Product details

Description

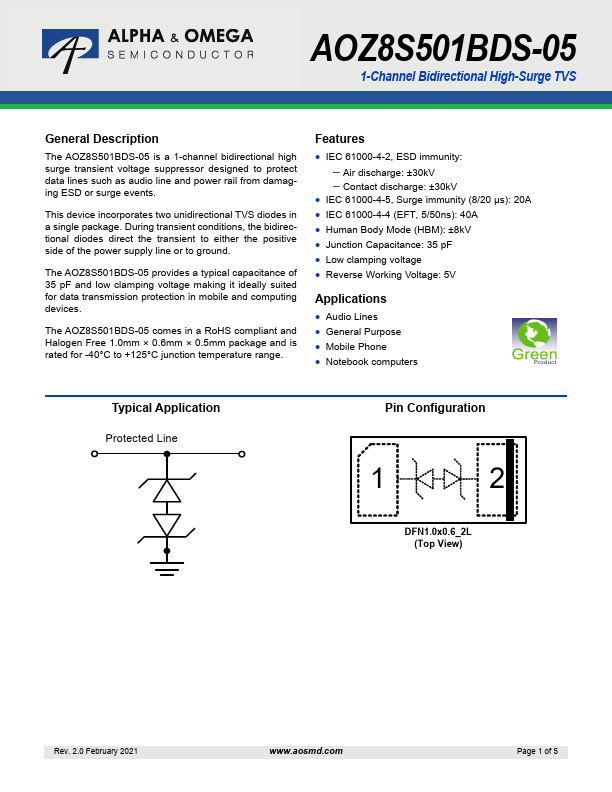

The AOZ8S501BDS-05 is a 1-channel bidirectional high surge transient voltage suppressor designed to protect data lines such as audio line and power rail from damaging ESD or surge events.

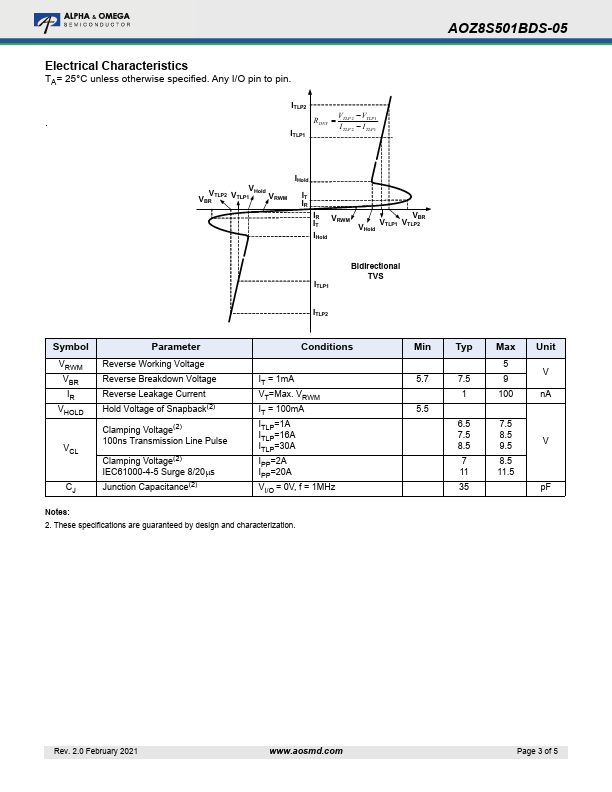

Features

IEC 61000-4-2, ESD immunity:.
Air discharge: ±30kV.
Contact discharge: ±30kV.
IEC 61000-4-5, Surge immunity (8/20 μs): 20A.
IEC 61000-4-4 (EFT, 5/50ns): 40A.
Human Body Mode (HBM): ±8kV.
Junction Capacitance: 35 pF.
Low clamping voltage.
Reverse Working Voltage: 5V.
