AOZ8S515UDS-20 Datasheet - Alpha & Omega Semiconductors

Single Channel High Surge TVS

AOZ8S515UDS-20 Features

* Surge protection for power rail

* IEC 61000-4-5 8/20µs 30A

* IEC 61000-4-2 (ESD) ±30kV (Air and Contact)

* Human body model (HBM) ±8kV

* Peak pulse power 1200W

* Operating voltage: 20V

* Green product Applications

* USB VBUS

AOZ8S515UDS-20 General Description

The AOZ8S515UDS-20 is a single channel high power transient voltage suppressor designed to protect power line from damaging surge and ESD events, with an operating voltage of 20V. This device is with one unidirectional TVS diode in 1.6x1.0mm DFN package. It can be used to meet both the ESD and Surge.

AOZ8S515UDS-20 Datasheet (521.79 KB)

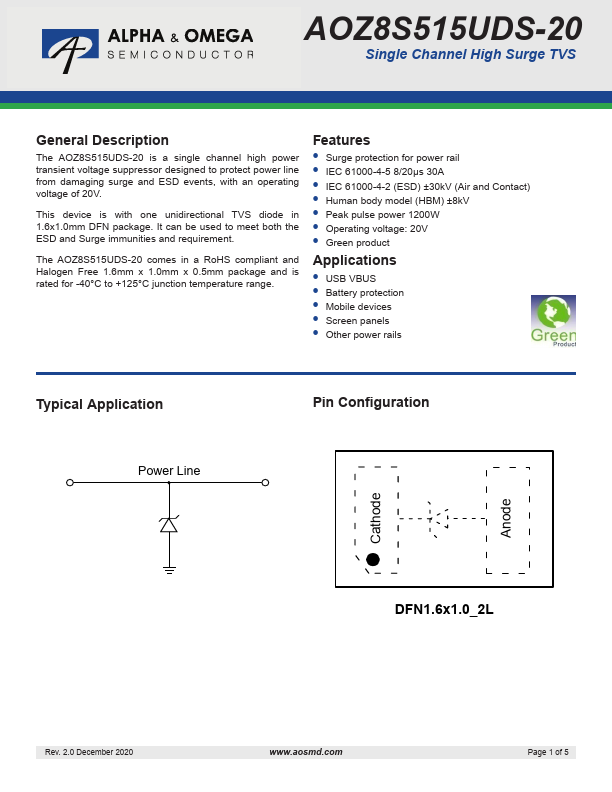

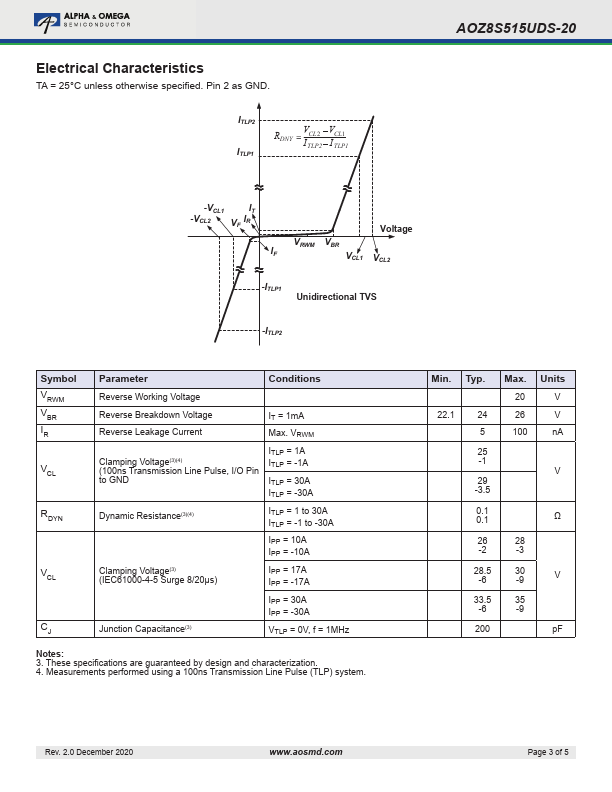

AOZ8S515UDS-20 Datasheet Preview — Preview of AOZ8S515UDS-20 PDF

Datasheet Details

Part number:

AOZ8S515UDS-20

Manufacturer:

Alpha & Omega Semiconductors

File Size:

521.79 KB

Description:

Single channel high surge tvs.
