AOZ8S516UDS-36 - Single Channel High Surge TVS

Alpha & Omega Semiconductors

AOZ8S516UDS-36 Datasheet Preview — Preview of AOZ8S516UDS-36 PDF

Datasheet Details

Part number	AOZ8S516UDS-36
Manufacturer	Alpha & Omega Semiconductors
File Size	583.79 KB
Description	Single Channel High Surge TVS
Datasheet	AOZ8S516UDS-36-AlphaOmegaSemiconductors.pdf

AOZ8S516UDS-36 Product details

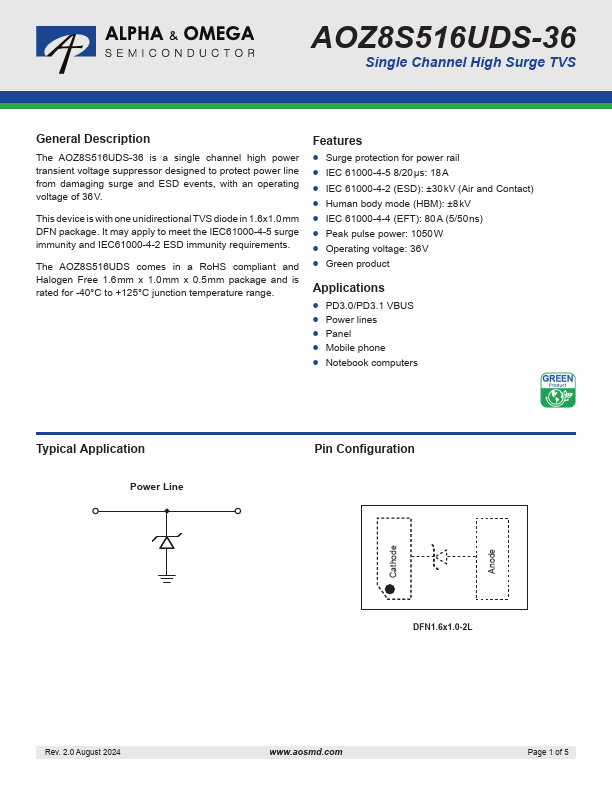

Description

The AOZ8S516UDS-36 is a single channel high power transient voltage suppressor designed to protect power line from damaging surge and ESD events, with an operating voltage of 36 V.

Features

Surge protection for power rail.
IEC 61000-4-5 8/20 μs: 18 A.
IEC 61000-4-2 (ESD): ±30 kV (Air and Contact).
Human body mode (HBM): ±8 kV.
IEC 61000-4-4 (EFT): 80 A (5/50 ns).
Peak pulse power: 1050 W.
Operating voltage: 36 V.
Green product.
