AOZ8S516UDS-48 Datasheet - Alpha & Omega Semiconductors

Single Channel High Surge TVS

AOZ8S516UDS-48 Features

* Surge protection for power rail

* IEC 61000-4-5 8/20 μs: 15 A

* IEC 61000-4-2 (ESD): ±30 kV (Air and Contact)

* Human body mode (HBM): ±8 kV

* IEC 61000-4-4 (EFT): 80 A (5/50 ns)

* Peak pulse power: 1050 W

* Operating voltage: 48 V

AOZ8S516UDS-48 General Description

The AOZ8S516UDS-48 is a single channel high power transient voltage suppressor designed to protect power line from damaging surge and ESD events, with an operating voltage of 48 V. This device is with one unidirectional TVS diode in 1.6x1.0 mm DFN package. It may apply to meet the IEC61000-4-5 surge.

AOZ8S516UDS-48 Datasheet (584.07 KB)

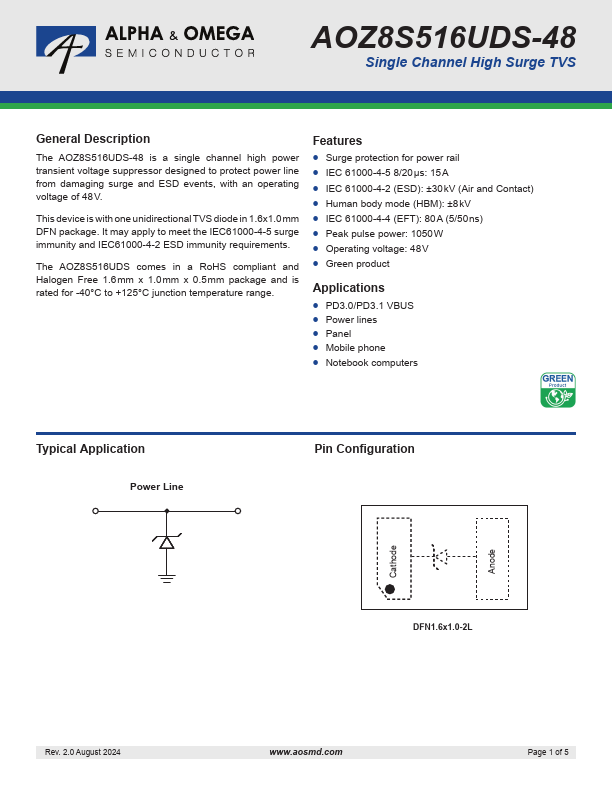

Preview of AOZ8S516UDS-48 PDF

Datasheet Details

Part number:

AOZ8S516UDS-48

Manufacturer:

Alpha & Omega Semiconductors

File Size:

584.07 KB

Description:

Single channel high surge tvs.

📁 Related Datasheet

AOZ8S516UDS-05 Single Channel High Surge TVS (Alpha & Omega Semiconductors)

AOZ8S516UDS-20 Single Channel High Surge TVS (Alpha & Omega Semiconductors)

AOZ8S516UDS-36 Single Channel High Surge TVS (Alpha & Omega Semiconductors)

AOZ8S513BDS-05 1-Channel Bidirectional TVS (Alpha & Omega Semiconductors)

AOZ8S515UDS-20 Single Channel High Surge TVS (Alpha & Omega Semiconductors)

AOZ8S501BDS-05 1-Channel Bidirectional High-Surge TVS (Alpha & Omega Semiconductors)

AOZ8S501BS2-05 2-Channel Bidirectional High-Surge TVS (Alpha & Omega Semiconductors)

AOZ8S502BS2-03 2-Channel Bidiretional Low Clamping Voltage TVS (Alpha & Omega Semiconductors)

AOZ8S503BS2-05 2-Channel Bidiretional Low Clamping Voltage TVS (Alpha & Omega Semiconductors)

AOZ8S507BDS-07 1-Channel Bidiretional High-Surge TVS (Alpha & Omega Semiconductors)

TAGS

AOZ8S516UDS-48 Single Channel High Surge TVS Alpha & Omega Semiconductors

Image Gallery

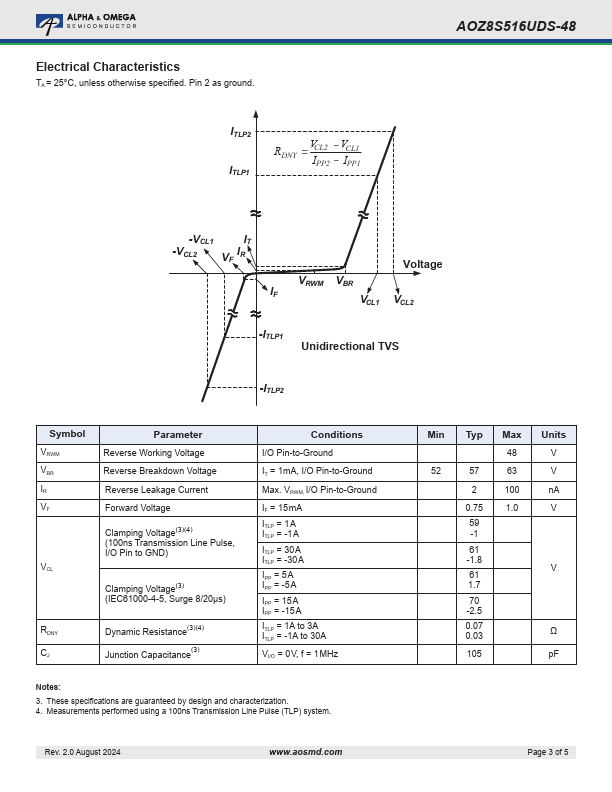

AOZ8S516UDS-48 Datasheet Preview Page 2 AOZ8S516UDS-48 Datasheet Preview Page 3
