A1780

Dimmer IC

A1780 Features

* The a1780 is a dimmer IC for halogen lamps. It uses an integrated time controller to control a wide range of DMOS switches, and includes protection circuits against overcurrent, over-voltage and over-temperature. A LED gives a visual indication of the output status at all times.  Dimming range: bet

A1780 Datasheet (189.13 KB)

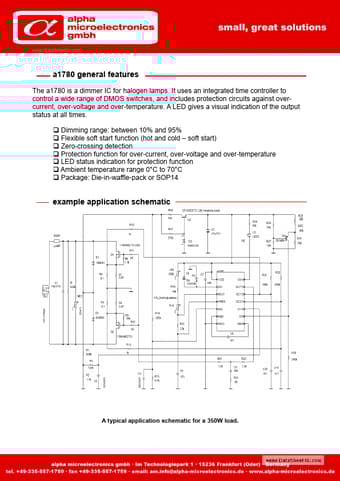

Preview of A1780 PDF

Datasheet Details

Part number:

A1780

Manufacturer:

Alpha Microelectronics

File Size:

189.13 KB

Description:

Dimmer ic.
