A1787 2SA1787

A1787 Description

Ordering number:EN3581 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1787/2SC4650 High-Definition CRT Display Video Output Applications .

A1787 Features

* High breakdown voltage : VCEO≥200V.
* Small reverse transfer capacitance and excellent high frequency characteristic: Cre=1.2pF (NPN), 1.7pF (PNP).
* Adoption of FBET processes. Package Dimensions unit:mm 2064 [2SA1787/2SC4650] ( ) : 2SA1786 E : Emitter C : Collector B : Base Speci

📥 Download Datasheet

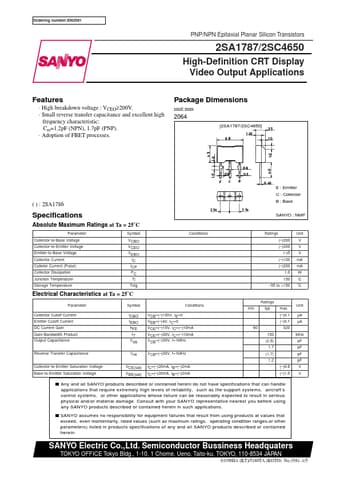

Preview of A1787 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1787
Manufacturer
Sanyo
File Size
158.69 KB
Datasheet
A1787-Sanyo.pdf
Description
2SA1787
