EP3C120 Datasheet - Altera Corporation

Cyclone Series Device Thermal Resistance

EP3C120 General Description

Junction-to-ambient thermal resistance (θJA) with no airflow when a heat sink is not being used. Junction-to-ambient thermal resistance with 100 ft./minute airflow when a heat sink is not being used. Junction-to-ambient thermal resistance with 200 ft./minute airflow when a heat sink is not being use.

EP3C120 Datasheet (92.32 KB)

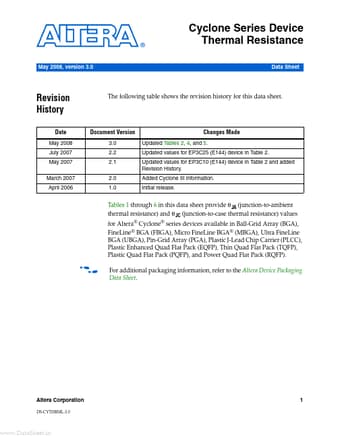

EP3C120 Datasheet Preview — Preview of EP3C120 PDF

Datasheet Details

Part number:

EP3C120

Manufacturer:

Altera Corporation

File Size:

92.32 KB

Description:

Cyclone series device thermal resistance.
Cyclone Series Device Thermal Resistance May 2008, version 3.0 Data Sheet Revision History Date May 2008 July 2007 May 2007 March 2007 April 2006 Th.
