EP3C25 Cyclone Series Device Thermal Resistance

Junction-to-ambient thermal resistance (θJA) with no airflow when a heat sink is not being used. Junction-to-ambient thermal resistance with 100 ft./minute airflow when a heat sink is not being used. Junction-to-ambient thermal resistance with 200 ft./minute airflow when a heat sink is not being use.

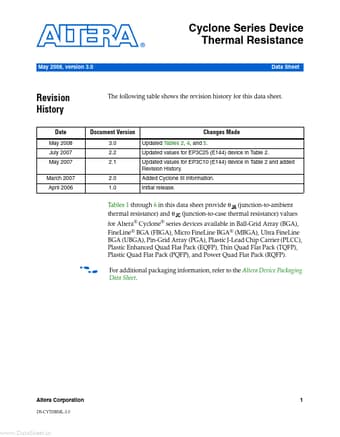

Cyclone Series Device Thermal Resistance May 2008, version 3.0 Data Sheet Revision History Date May 2008 July 2007 May 2007 March 2007 April 2006 The following table shows the revision history for this data sheet. Document Version 3.0 2.2 2.1 2.0 1.0 Changes Made Updated Tables 2, 4, and 5. Updated values for EP3C25 (E144) device in Table 2. Updated values for EP3C10 (E144) device in Table 2 and added Revision History. Added Cyclone III information. Initial release. Tables 1 through 6 in th.
