DCS104B SMT Directional Couplers

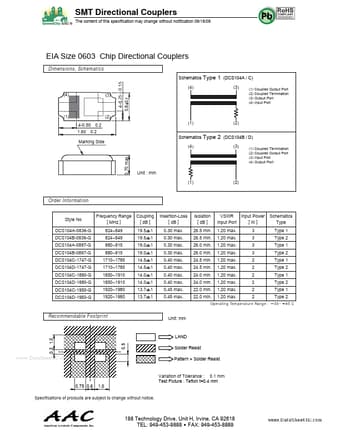

SMT Directional Couplers The content of this specification may change without notification 09/18/08 EIA Size 0603 Chip Directional Couplers Dimensions, Schematics Schematics Type (4) (4) 4-0. 0.8±0. 1 (DCS104A / C) (3) (1) Coupled Output Port (2) Coupled Termination (3) Output Port (4) Input Port (1) 4-0.50 0.2 1.60 0.2 Marking Side (2) (1) Schematics Type (4) 0.70 max. (2) 2 (DCS104B / D) (3) (1) Coupled Termination (2) Coupled Output Port (3) Input Port (4) Output Port Unit : mm (1) (2.

DCS104A_AmericanAccurateComponents.pdf

DCS104B Datasheet Preview — This datasheet PDF includes multiple part numbers: DCS104B, DCS104A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DCS104B, DCS104A

Manufacturer:

American Accurate Components

File Size:

110.08 KB

Description:

Smt directional couplers.

Note:

This datasheet PDF includes multiple part numbers: DCS104B, DCS104A.
Please refer to the document for exact specifications by model.
