Part number: DCS1800
Manufacturer: NSC
File Size: 268.74KB
Download: 📄 Datasheet
Description: Triple-band VCO for GSM900/DCS1800/PCS1900
Part number: DCS1800
Manufacturer: NSC
File Size: 268.74KB
Download: 📄 Datasheet
Description: Triple-band VCO for GSM900/DCS1800/PCS1900
n On-chip Triple-band RF VCOs GSM: 880 MHz to 915 MHz DCS: 1710 MHz to 1785 MHz PCS: 1850 MHz to 1910 MHz n On-chip tank circuit n Low phase noise — -167 dBc/Hz @ 20 MHz .
n Transmit VCO for GSM, DCS, and PCS n Closed loop modulation systems

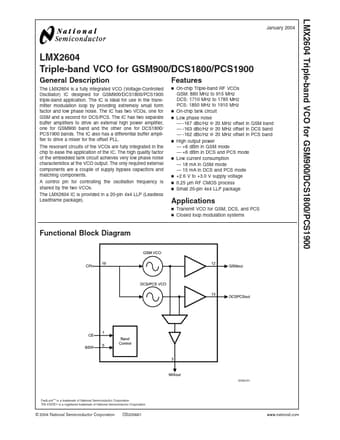

Functional Block Diagram
20066101
FastLock™ is .
The LMX2604 is a fully integrated VCO (Voltage-Controlled Oscillator) IC designed for GSM900/DCS1800/PCS1900 triple-band application. The IC is ideal for use in the transmitter modulation loop by providing extremely small form factor and low phase no.
