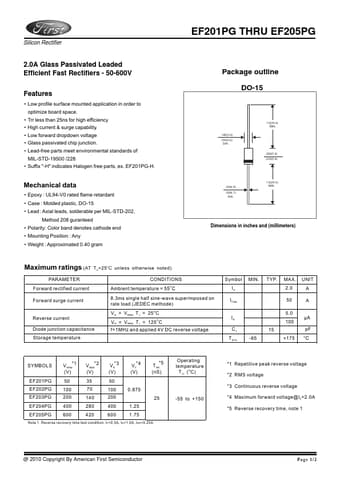

Silicon Rectifier
2.0A Glass Passivated Leaded Efficient Fast Rectifiers - 50-600V
Features
• Low profile surface mounted application in order to optimize board space.
• Trr less than 25ns for high efficiency • High current & surge capability. • Low forward dropdown voltage • Glass passivated chip junction. • Lead-free parts meet environmental standards of
MIL-STD-19500 /228 • Suffix "-H" indicates Halogen free parts, ex. EF201PG-H.
Mechanical data
• Epoxy : UL94-V0 rated flame retardant • Case : Molded plastic, DO-15 • Lead : Axial leads, solderable per MIL-STD-202,
Method 208 guranteed • Polarity: Color band denotes cathode end • Mounting Position : Any • Weight : Approximated 0.40 gram
EF201PG THRU EF205PG
Package outline DO-15
.140(3.6) .104(2.6)
DIA.
.034(.9) .028(.7)
DIA.
1.0(25.
