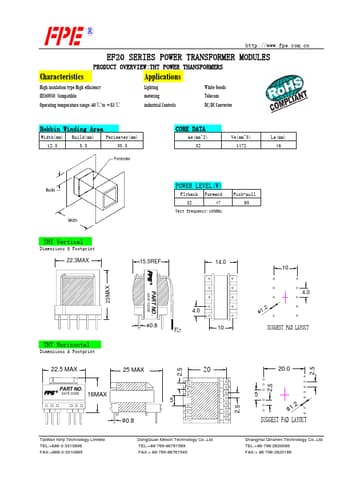

EF20 SERIES POWER TRANSFORMER MODULES
PRODUCT OVERVIEW:THT POWER THANSFORMERS
Characteristics
Applications
High insulation type High efficiency IEC60950 Compatible Operating temperature range:-40℃to +85℃
Lighting metering industrial Controls
White Goods Telecom DC/DC Converter
Bobbin Winding Area
Width(mm) Build(mm) Perimeter(mm)
12.5
3.3
30.3
CORE DATA
Ae(mm^2) 32
Ve(mm^3) 1472
Le(mm) 46
POWER LEVEL(W)
Flyback Forward 32 47
Test frequency:100KHz
Push-pull 95
THT Vertical
Dimensions & Footprint
22.3MAX
15.5REF
14.0
10
23MAX
2.5 2.5
2.5 2.5
PART NO.
R
DATE CODE
THT Horizontal
Dimensions & Footprint
22.5 MAX
4.0
∅0.8 Fly
10
25 MAX
20
PART NO.
R
DATE CODE
16MAX
5
TaiWan Kinji Technology Limited TEL:+886-3-3310896 FAX:+886-3-3310865
∅0.
EF20 Datasheet
