FMSK10100C-D2G, FMSK1020C-D2G Schottky Barrier Rectifier

FMSK10100C-D2G Description

FMSK1020C-D2G THRU FMSK10200C-D2G Schottky Barrier Rectifier (Single Chip) Reverse Voltage: 20 to 200 Volts Forward Current: 10.0 Ampere .

FMSK10100C-D2G Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Guard ring for overvoltage protection
* Low power loss, high efficiency
* High current capability, Low forward voltage drop

FMSK10100C-D2G Applications

* High temperature soldering guaranteed: 260 C/10 seconds, 0.25"(6.35mm)from case
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Package outline TO-263 0.420(10.67) 0.380(9.65) 0.245(6.22) MIN 0.360(9.14) 0.320(8.13) 1K 2 0.190(4.83) 0.160(4.06) 0.055(1.40) 0.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FMSK10100C-D2G, FMSK1020C-D2G. Please refer to the document for exact specifications by model.

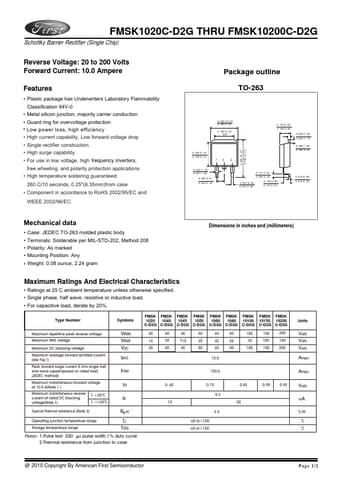

datasheet Preview Page 2

Datasheet Details

Part number
FMSK10100C-D2G, FMSK1020C-D2G
Manufacturer
American First Semiconductor
File Size
605.61 KB
Datasheet
FMSK1020C-D2G-AmericanFirstSemiconductor.pdf
Description
Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: FMSK10100C-D2G, FMSK1020C-D2G.
Please refer to the document for exact specifications by model.
