FMSK1020C-D2G, Schottky Barrier Rectifier

FMSK1020C-D2G THRU FMSK10200C-D2G Schottky Barrier Rectifier (Single Chip) Reverse Voltage: 20 to 200 Volts Forward Current: 10.0 Ampere .

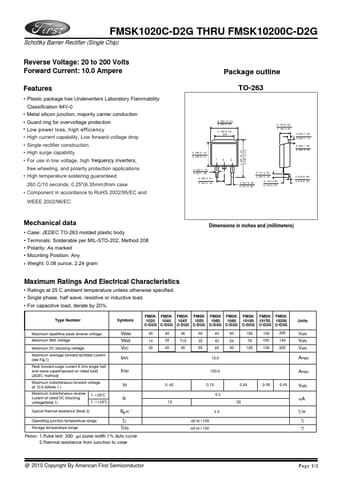

datasheet Preview Page 1 from Datasheet4u.com

FMSK1020C-D2G-AmericanFirstSemiconductor.pdf

FMSK1020C-D2G Datasheet Preview — Preview of FMSK1020C-D2G PDF

Datasheet Details

Part number:

FMSK1020C-D2G

Manufacturer:

American First Semiconductor

File Size:

605.61 KB

Description:

Schottky Barrier Rectifier

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Guard ring for overvoltage protection
* Low power loss, high efficiency
* High current capability, Low forward voltage drop

Applications

* High temperature soldering guaranteed: 260 C/10 seconds, 0.25"(6.35mm)from case
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Package outline TO-263 0.420(10.67) 0.380(9.65) 0.245(6.22) MIN 0.360(9.14) 0.320(8.13) 1K 2 0.190(4.83) 0.160(4.06) 0.055(1.40) 0.
