FMSK1020C-DG Schottky Barrier Rectifier

FMSK1020C-DG Description

Schottky Barrier Rectifier FMSK1020C-DG THRU FMSK10200C-DG Reverse Voltage: 20 to 200 Volts Forward Current: 1.0 Ampere .

FMSK1020C-DG Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Guard ring for overvoltage protection
* Low power loss, high efficiency
* High current capability, Low forward voltage drop
* Single rectifier construction
* High surge c

FMSK1020C-DG Applications

* High temperature soldering guaranteed: 260 C/10 seconds at terminals, 0.25"(6.35mm)from case
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Package outline TO-252 0.265(6.73) 0.244(6.20) 0.215(5.46) 0.205(5.21) 0.245(6.22) 0.220(5.60) 1K2 0.104(2.65) 0.085(2.

📥 Download Datasheet

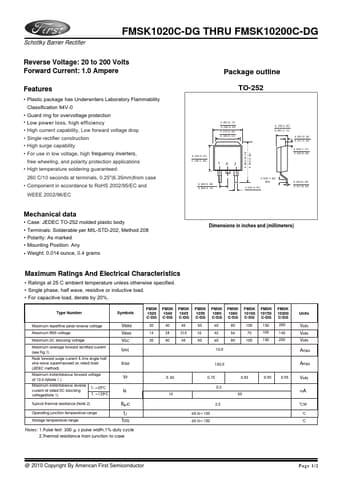

Preview of FMSK1020C-DG PDF
datasheet Preview Page 2
