SMA282LE Datasheet, Display, American Opto Plus LED

SMA282LE Features

  • Display
  • 0.28 inch (7.0 mm) Digit Height.
  • SMD type.
  • Low current operation.
  • Gray face, White segment.
  • RoHS compliant, Pb Free.
  • DESCRIPT

PDF File Details

Part number:

SMA282LE

Manufacturer:

American Opto Plus LED

File Size:

564.21kb

Download:

📄 Datasheet

Description:

Led display. The SMA282LE GW & SMA282LE GW are 0.28 inch (7.0mm) height Dual 7-segment displays. This device utilizes Super Bright Red LED chip wh

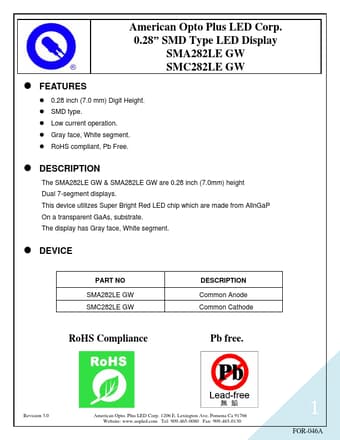

Datasheet Preview: SMA282LE 📥 Download PDF (564.21kb)
Page 2 of SMA282LE Page 3 of SMA282LE
