SMA28-2, SMA28-2-MA - Cascadable Amplifier

SMA28-2 Description

A28-2 / SMA28-2 Cascadable Amplifier 10 to 1500 MHz Rev.V3 .
The A28-2 RF amplifier is a discrete thin film hybrid design, which incorporates the use of thin film manufacturing processes for accurate performance.

SMA28-2 Features

* LOW NOISE: 3.5 dB (TYP. )
* HIGH EFFICIENCY: 27 mA (TYP. ) @ +5 Vdc
* GOOD DYNAMIC RANGE: 105 dB (TYP. )
* LOW VSWR:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMA28-2, SMA28-2-MA. Please refer to the document for exact specifications by model.

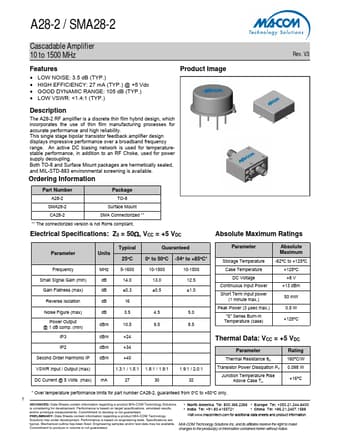

datasheet Preview Page 2

Datasheet Details

Part number
SMA28-2, SMA28-2-MA
Manufacturer
MA-COM
File Size
1.45 MB
Datasheet
SMA28-2-MA-COM.pdf
Description
Cascadable Amplifier
Note
This datasheet PDF includes multiple part numbers: SMA28-2, SMA28-2-MA.
Please refer to the document for exact specifications by model.
