SMA1

Cascadable Amplifier

SMA1 Features

* LOW NOISE: 2.4 dB (TYP.)

* LOW VSWR: 1.3:1 (TYP.)

* HIGH GAIN: 16 dB (TYP.) Description The A1 RF amplifier is a discrete hybrid design, which uses thin film manufacturing processes for accurate performance and high reliability. This single stage bipolar transistor feedback amplifier d

SMA1 General Description

The A1 RF amplifier is a discrete hybrid design, which uses thin film manufacturing processes for accurate performance and high reliability. This single stage bipolar transistor feedback amplifier design displays impressive performance over a broadband frequency range. Both TO-8 and Surface Mount pa.

SMA1 Datasheet (615.79 KB)

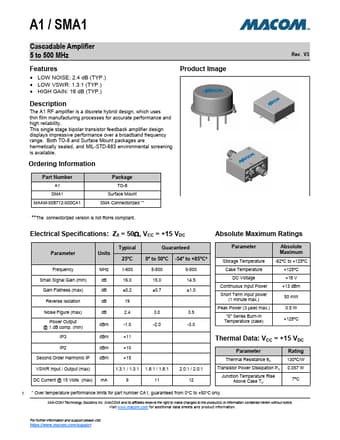

Preview of SMA1 PDF

Datasheet Details

Part number:

SMA1

Manufacturer:

MA-COM

File Size:

615.79 KB

Description:

Cascadable amplifier.
