SMD-CT591LB-STI Blue Touch SMD Display

Touch Display INTERNAL CIRCUIT DIAGRAMS Version 1.3 Date: 3-13-2017 Specifications are subject to change without notice. American Opto Plus LED Corp. 1206 E. Lexington Ave. , Pomona CA 91766 Tel: 909-465-0080 Fax: 909-465-0130 www.aopled.com 2 American Opto Plus LED Corp. SMD-CT591LB-STI 19.0 x .

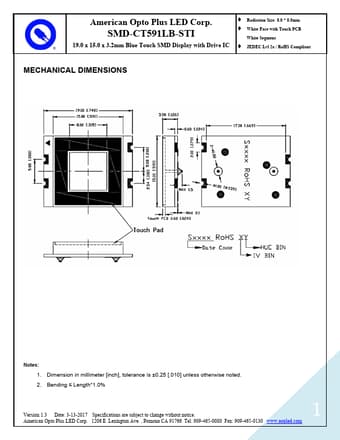

American Opto Plus LED Corp. SMD-CT591LB-STI 19.0 x 15.0 x 3.2mm Blue Touch SMD Display with Drive IC  Radiation Size: 8.0 8.0mm  White Face with Touch PCB White Segment  JEDEC Lvl 2a / RoHS Compliant MECHANICAL DIMENSIONS Notes: 1. Dimension in millimeter [inch], tolerance is ±0.25 [.010] unless otherwise noted. 2. Bending ≤ Length 1.0% Version 1.3 Date: 3-13-2017 Specifications are subject to change without notice. American Opto Plus LED Corp. 1206 E. Lexington Ave. , Pomona C.
