SMD-3500 TRIPLE BALANCED MIXER

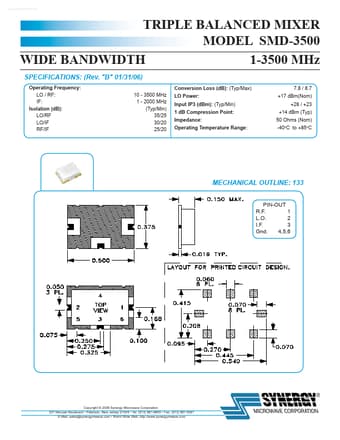

www.DataSheet4U.com TRIPLE BALANCED MIXER MODEL SMD-3500 WIDE BANDWIDTH 1-3500 MHz SPECIFICATIONS: (Rev. "B" 01/31/06) Operating Frequency: LO / RF: IF: Isolation (dB): LO/RF LO/IF RF/IF 10 - 3500 MHz 1 - 2000 MHz (Typ/Min) 35/25 30/20 25/20 Conversion Loss (dB): (Typ/Max) LO Power: Input IP3 (dBm): (Typ/Min) 1 dB Compression Point: Impedance: Operating Temperature Range: 7.8 / 8.7 +17 dBm(Nom) +28 / +23 +14 dBm (Typ) 50 Ohms (Nom) -40oC to +85oC MECHANICAL OUTLINE: 133 PIN-OUT R.F. 1 L.O. 2 I.

SMD-3500 Datasheet (232.46 KB)

SMD-3500 Datasheet Preview — Preview of SMD-3500 PDF

Datasheet Details

Part number:

SMD-3500

Manufacturer:

Synergy

File Size:

232.46 KB

Description:

Triple balanced mixer.
