PT100-xxxx Datasheet - American Precision

PT100-xxxx - Power Toroids / Horizontal or Vertical Mount

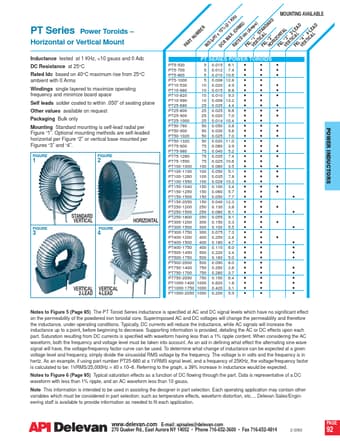

Inductance tested at 1 KHz, <10 gauss and 0 Adc DC Resistance at 25°C Rated Idc based on 40°C maximum rise from 25°C ambient with 0 Arms Windings single layered to maximize operating frequency and minimize board space Self leads solder coated to within .050" of seating plane Other values available on request Packaging Bulk only Mounting Standard mounting is self-lead radial per Figure “1”. Optional mounting methods are self-leaded horizontal per Figure “2” or vertical base mounted per Figures “3.

PT100-xxxx_AmericanPrecision.pdf

PT100-xxxx Datasheet Preview — Preview of PT100-xxxx PDF

Datasheet Details

Part number:

PT100-xxxx

Manufacturer:

American Precision

File Size:

138.03 KB

Description:

Power toroids / horizontal or vertical mount.
