AVRC18S05Q015100R

RC Type Filter

AVRC18S05Q015100R Features

* R-C type 4 channels array filter 0603 size IEC 61000-4-2 (ESD) Level #4, MSL Level #1 Multilayer laminated structure AVRC series www.DataSheet4U.com AMOTECH Notes The contents of this datasheet are subject to change without notice. Please confirm the specifications and de

AVRC18S05Q015100R General Description

AVRC (1) (1) (2) (3) (4) (5) (6) (7) 5 (2) S (3) 03 (4) Q (5) 050 (6) 100R (7) Series name : “AVRC” - R-C Type EMI & ESD filter Maximum continuous working voltage (Vdc) : “5”- 5.5V, “14”- 14V, “18”-18V Varistor voltage tolerance : “S” - special order Chip Size : “03” - 0603 (1.6 x 0.8 mm) Co.

AVRC18S05Q015100R Datasheet (803.08 KB)

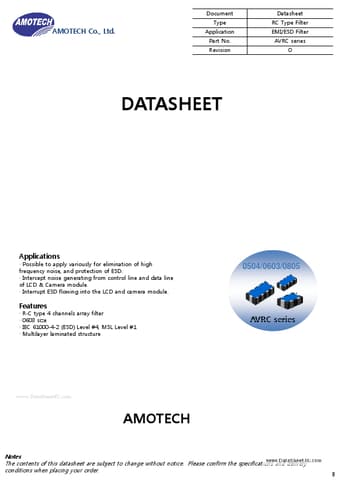

Preview of AVRC18S05Q015100R PDF

Datasheet Details

Part number:

AVRC18S05Q015100R

Manufacturer:

Amotech

File Size:

803.08 KB

Description:

Rc type filter.
Document Type Datasheet RC Type Filter EMI/ESD Filter AVRC series 0 AMOTECH Co., Ltd. Application Part No. Revision DATASHEET Applications
*.
