AM480272H3-TMQW-TW1H - TFT Module

Datasheet Summary

Features

  • 4.3 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) module. This module is composed of a 4.3” TFT-LCD panel, LCD controller, power driver circuit, touch panel and backlight unit. 1.1 TFT Panel Feature : (1) Construction: 4.3” a-Si color TFT-LCD, White LED Backlight and PCB. (2) Resolution (pixel): 480(R. G. B) X 272 (3) Number of the Colors : 262K colors ( R , G , B 6 bit digital each) (4) LCD type : Transmissive Color TFT LCD ( normally White) (5) Interface: 40 pin pitch 0.5.

📥 Download Datasheet

Datasheet preview – AM480272H3-TMQW-TW1H

Datasheet Details

Part number AM480272H3-TMQW-TW1H
Manufacturer Ampire
File Size 889.59 KB
Description TFT Module
Datasheet download datasheet AM480272H3-TMQW-TW1H Datasheet
Additional preview pages of the AM480272H3-TMQW-TW1H datasheet.

📁 Similar Datasheet

  • AM4811P - P-Channel MOSFET (Analog Power)
  • AM4812 - 30V N-CHANNEL ENHANCEMENT MODE MOSFET (AiT Semiconductor)
  • AM4825P - P-Channel 30-V (D-S) MOSFET (Analog Power)
  • AM4825PE - P-Channel 30-V (D-S) MOSFET (Analog Power)
  • AM4830NS - N-Channel MOSFET (Analog Power)
  • AM4832N - N-Channel MOSFET (Analog Power)
  • AM4835EP - P-Channel MOSFET (Analog Power)
  • AM4835P - P-Channel MOSFET (Analog Power)
  • AM4840N - N-Channel MOSFET (Analog Power)
  • AM4841P - P-Channel MOSFET (Analog Power)
Other Datasheets by Ampire

Full PDF Text Transcription

Click to expand full text

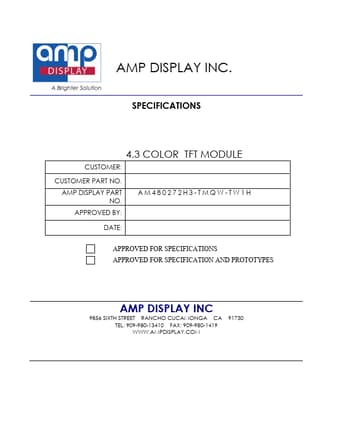

AMP DISPLAY INC. SPECIFICATIONS 4.3 COLOR TFT MODULE CUSTOMER: CUSTOMER PART NO. AMP DISPLAY PART NO. APPROVED BY: AM480272H3-TMQW-TW1H DATE: APPROVED FOR SPECIFICATIONS APPROVED FOR SPECIFICATION AND PROTOTYPES AMP DISPLAY INC 9856 SIXTH STREET RANCHO CUCAMONGA CA TEL: 909-980-13410 FAX: 909-980-1419 WWW.AMPDISPLAY.COM 91730 RECORD OF REVISION Revision Date Page 2009/4/17 -- Contents New Release 80/8Bit MCU interface+Touch Panel+Touch Panel controller TSC2046 Editor Kokai Date : 2009/4/17 AMP DISPLAY INC. 2 1 Features 4.3 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) module. This module is composed of a 4.3” TFT-LCD panel, LCD controller, power driver circuit, touch panel and backlight unit. 1.1 TFT Panel Feature : (1) Construction: 4.
