BLM8G0710S-30PB

LDMOS 2-stage power MMIC

BLM8G0710S-30PB Features

* Designed for broadband operation (frequency 700 MHz to 1000 MHz)

* High section-to-section isolation enabling multiple combinations

BLM8G0710S-30PB General Description

The BLM8G0710S-30PB(G) is a dual section, 2-stage power MMIC using Ampleon’s state of the art GEN8 LDMOS technology. This multiband device is perfectly suited as general purpose driver or small cell final in the frequency range from 700 MHz to 1000 MHz. Available in gull wing or straight lead outlin.

BLM8G0710S-30PB Datasheet (778.15 KB)

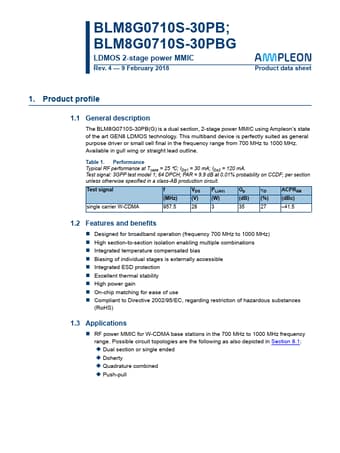

Preview of BLM8G0710S-30PB PDF

Datasheet Details

Part number:

BLM8G0710S-30PB

Manufacturer:

Ampleon

File Size:

778.15 KB

Description:

Ldmos 2-stage power mmic.
BLM8G0710S-30PB; BLM8G0710S-30PBG LDMOS 2-stage power MMIC Rev. 4

* 9 February 2018 Product data sheet 1. Product profile 1.1 General descr.
