FKC08 8 WATTS DC-DC CONVERTER

FK C08 SERIES FKC08 DC/DC Single & Dual Converters: 8 Watts Specifications INPUT VOLTAGE: 12VDC (9~18) 24VDC (18~36) 48VDC (36~75) Pi type 12V/36V, 24V/50V, 48V/100V (100ms max) Model dependent 80 - 85% 600ms typical with constant resistor load ±2% N/A INPUT FILTER: INPUT SURGE VOLTAGE: EFFICIENCY: START UP TIME: VOLTAGE ACCURACY: VOLTAGE ADJUSTMENT: MINIMUM LOAD: LINE REGULATION: LOAD REGULATION: 10% to meet regulation/specifications ±0.2% at constant 100% load ±0.5% single, ±1% dual, 10%~10.

FKC08 Features

* Wide input 2:1 range

* Standard 24 DIP or SMD type option - SMD

* Nickel coated copper shield

* EMC EN55022, Immunity EN61000-4

* Isolation 1,600V

* Safety approvals to EN60950, UL1950

* High operating temperature 85°C

* High MTBF 3,0

FKC08 Datasheet (77.30 KB)

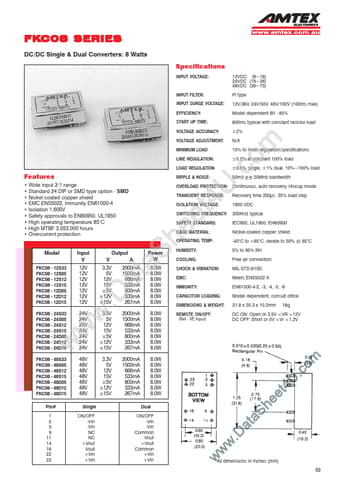

FKC08 Datasheet Preview — Preview of FKC08 PDF

Datasheet Details

Part number:

FKC08

Manufacturer:

Amtex

File Size:

77.30 KB

Description:

8 watts dc-dc converter.
