AD10677

65 MSPS A/D Converter

AD10677 Features

* 65 MSPS sample rate 80 dBFS signal-to-noise ratio Transformer-coupled analog input Single PECL clock source Digital outputs True binary format 3.3 V and 5 V CMOS-compatible APPLICATIONS Low signature radar Medical imaging Communications instrumentation Instrumentation Antenna array processing GENERA

AD10677 General Description

The AD10677 is a 16-bit, high performance, analog-to-digital converter (ADC) for applications that demand increased SNR levels. Exceptional noise performance and a typical signal-tonoise ratio of 80 dBFS are obtained by digitally postprocessing the outputs of four ADCs. A single analog input and PEC.

AD10677 Datasheet (520.86 KB)

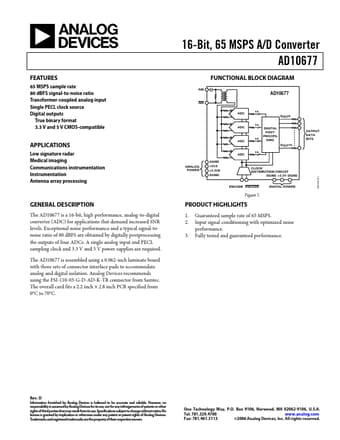

Preview of AD10677 PDF

Datasheet Details

Part number:

AD10677

Manufacturer:

Analog Devices ↗

File Size:

520.86 KB

Description:

65 msps a/d converter.
