AD10680

100 MSPS A/D Converter

AD10680 Features

* 100 MSPS sample rate SNR of 85 dBFS @10 MHz SFDR of 85 dBFS @10 MHz VSWR of 1:1.5 AC-coupled input signal conditioning Enhanced signal-to-noise ratio Differential ENCODE signal LVDS output levels Twos complement output data 16-Bit, 100 MSPS A/D Converter AD10680 FUNCTIONAL BLOCK DIAGRAM ENCODE AD1

AD10680 General Description

The AD10680 is a 16-bit analog-to-digital converter (ADC) with a transformer-coupled, analog input and digital postprocessing for enhanced signal-to-noise ratio (SNR). The product operates at a 100 MSPS conversion rate with outstanding dynamic performance. Internal filters can be digitally selected .

AD10680 Datasheet (285.03 KB)

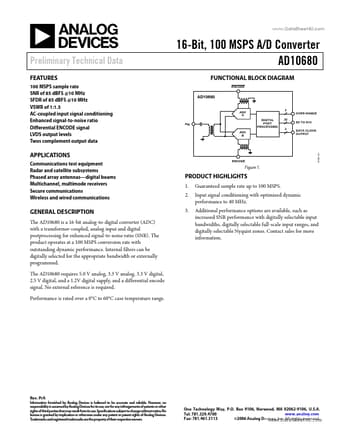

Preview of AD10680 PDF

Datasheet Details

Part number:

AD10680

Manufacturer:

Analog Devices ↗

File Size:

285.03 KB

Description:

100 msps a/d converter.
