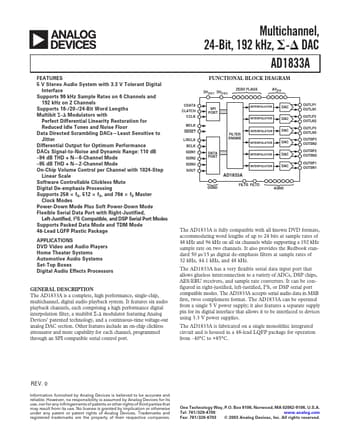

📥 Download Datasheet Datasheet Preview Page 1

Description

Multichannel, 24-Bit, 192 kHz, ⌺-⌬ DAC AD1833A .
The AD1833A is a complete, high performance, single-chip, multichannel, digital audio playback system.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AD1833A, AD1. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AD1833A, AD1
Manufacturer
Analog Devices ↗
File Size
687.50 KB
Datasheet
AD1-833.pdf
Description
24-Bit/ 192 kHz/ DAC
Note
This datasheet PDF includes multiple part numbers: AD1833A, AD1.
Please refer to the document for exact specifications by model.

Features

* 5 V Stereo Audio System with 3.3 V Tolerant Digital Interface Supports 96 kHz Sample Rates on 6 Channels and 192 kHz on 2 Channels Supports 16-/20-/24-Bit Word Lengths Multibit ⌺- ⌬ Modulators with Perfect Differential Linearity Restoration for Reduced Idle Tones and Noise Floor Data Directed Scramb

Applications

* DVD Video and Audio Players Home Theater Systems Automotive Audio Systems Set-Top Boxes Digital Audio Effects Processors FUNCTIONAL BLOCK DIAGRAM DVD D 1 DVD D 2 ZERO FLAGS AVD D OUTLP1 OUTLN1 OUTLP2 OUTLN2 OUTLP3 OUTLN3 OUTRP3 OUTRN3 OUTRP2 OUTRN2 OUTRP1 OUTRN1 CDATA CLATCH CCLK MCLK RESET L/RCLK
