AD1836

Multichannel 96 kHz Codec

AD1836 Features

* 5 V Multichannel Audio System Accepts 16-/18-/20-/24-Bit Data Supports 24 Bits and 96 kHz Sample Rate Multibit Sigma-Delta Modulators with Data Directed Scrambling Data-Directed Scrambling ADCs and DACs

* Least Sensitive to Jitter Differential Output for Optimum Performance ADCs:

* 92 d

AD1836 General Description

The AD1836 is a high-performance, single-chip codec providing three stereo DACs and two stereo ADCs using ADI’s patented multibit sigma-delta architecture. An SPI port is included, allowing a microcontroller to adjust volume and many other parameters. The AD1836 operates from a 5 V supply, with pro.

AD1836 Datasheet (878.73 KB)

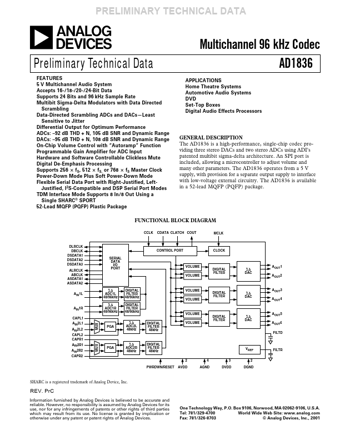

Preview of AD1836 PDF

Datasheet Details

Part number:

AD1836

Manufacturer:

Analog Devices ↗

File Size:

878.73 KB

Description:

Multichannel 96 khz codec.
