AD1862 Datasheet, Dac, Analog Devices

AD1862 Features

• Dac 120 dB Signal-to-Noise Ratio 102 dB D-Range Performance ؎ 1 dB Gain Linearity ؎ 1 mA Output Current 16-Pin DIP Package 0.0012% THD + N APPLICATIONS High Performance Compact Disc Players

PDF File Details

Part number:

AD1862

Manufacturer:

Analog Devices ↗

File Size:

183.19kb

Download:

📄 Datasheet

Description:

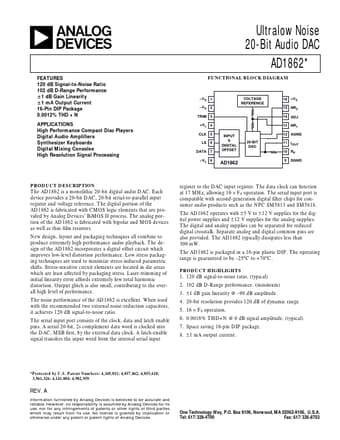

Ultralow noise 20-bit audio dac. The AD1862 is a monolithic 20-bit digital audio DAC. Each device provides a 20-bit DAC, 20-bit serial-to-parallel input register and

AD1862 Application

• Applications High Performance Compact Disc Players Digital Audio Amplifiers Synthesizer Keyboards Digital Mixing Consoles High Resolution Signal Pro
