AD1866

Single Supply Dual 16-Bit Audio DAC

AD1866 Features

* Dual Serial Input, Voltage Output DACs Single +5 Volt Supply 0.005% THD+N Low Power

* 50 mW 115 dB Channel Separation Operates at 8 ؋ Oversampling 16-Pin Plastic DIP or SOIC Package APPLICATIONS Multimedia Workstations PC Audio Add-In Boards Portable CD and DAT Players Automotive CD and DAT P

AD1866 General Description

The AD1866 is a complete dual 16-bit DAC offering excellent performance while requiring a single +5 V power supply. It is fabricated on Analog Devices’ ABCMOS wafer fabrication process. The monolithic chip includes CMOS logic elements, bipolar and MOS linear elements and laser trimmed, thinfilm res.

AD1866 Datasheet (251.00 KB)

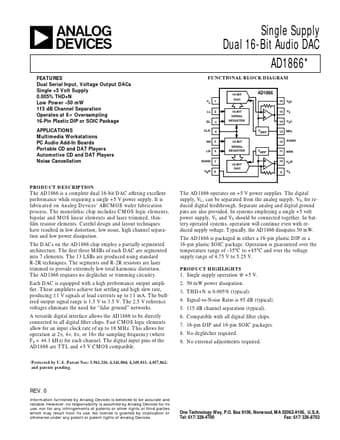

Preview of AD1866 PDF

Datasheet Details

Part number:

AD1866

Manufacturer:

Analog Devices ↗

File Size:

251.00 KB

Description:

Single supply dual 16-bit audio dac.
