AD1884A - High Definition Audio SoundMAX Codec

Analog Devices

📥 Download Datasheet

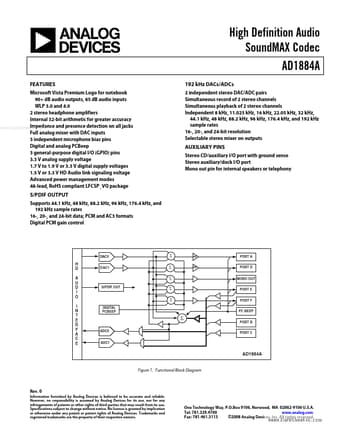

AD1884A Datasheet Preview — Preview of AD1884A PDF

Datasheet Details

Part number: AD1884A
Manufacturer: Analog Devices ↗
File Size: 0.96 MB
Datasheet: AD1884A_AnalogDevices.pdf
Description: High Definition Audio SoundMAX Codec

AD1884A Product details

Description

3 Additional Information 3 Jack Configuration 3 Specifications 4 Test Conditions 4 Performance 4 General Specifications 4 www.DataSheet4U.com HD Audio Link Specification 7 Power-Down States 7 Absolute Maximum Ratings 8 ESD Caution 8 Environmental Conditions 8 Pin Configuration and Function Descriptions 9 Audio Widgets 12 HD Audio Parameters 13 HD Widget Parameters 14 Connection List 15 Default Configuration Bytes 16 Outline Dimensions 17 Ordering Guide 17.

Features

Microsoft Vista Premium Logo for notebook 90+ dB audio outputs, 85 dB audio inputs WLP 3.0 and 4.0 2 stereo headphone amplifiers Internal 32-bit arithmetic for greater accuracy Impedance and presence detection on all jacks www. DataSheet4U. com Full analog mixer with DAC inputs 3 independent microphone bias pins Digital and analog PCBeep 3 general-purpose digital I/O (GPIO) pins 3.3 V analog supply voltage 1.7 V to 1.9 V or 3.3 V digital supply voltages 1.5 V or 3.3 V HD Audio link signaling volta.
