AD1958 - PLL/Multibit DAC

Name: AD1958
SKU: AD1958-152899

Analog Devices

📥 Download Datasheet

AD1958 Datasheet Preview — Preview of AD1958 PDF

Datasheet Details

Part number	AD1958
Manufacturer	Analog Devices
File Size	135.30 KB
Description	PLL/Multibit DAC
Datasheet	AD1958_AnalogDevices.pdf

AD1958 Product details

Description

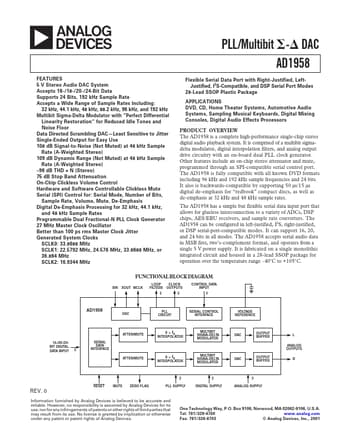

28-Lead Small Outline Package 28-Lead Small Outline Package Evaluation Board PIN CONFIGURATION Package Option RS-28 RS-28 on 13" Reels CCLK 1 CLATCH 2 RESET 3 LRCLK 4 BCLK 5 SDATA 6 DVDD 7 28 27 26 25 24 CDATA M

Features

5 V Stereo Audio DAC System Accepts 16-/18-/20-/24-Bit Data Supports 24 Bits, 192 kHz Sample Rate Accepts a Wide Range of Sample Rates Including: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, and 192 kHz Multibit Sigma-Delta Modulator with “Perfect Differential Linearity Restoration” for Reduced Idle Tones and Noise Floor Data Directed Scrambling DAC.
Least Sensitive to Jitter Single-Ended Output for Easy Use 108 dB Signal-to-Noise (Not Muted) at 48 kHz Sample Rate (A-Weighted Stereo) 109 d.
