AD382

High Speed / Low Drift FET Operational Amplifier

AD382 Features

* High Slew Rate 30V/p,s Fast Settling to 0.1%: 700ns High Output Current: 50mA for AD382 (10mA for AD381) Low Drift (5p,Vf'C-L Grades) Low Offset Voltage (250p,V-L Grades) Low Input Bias Currents Low Noise (2p,V pop) OBPRODUCT DESCRIPTION SThe AD3811AD382 are hybrid operational amplifiers combin

AD382 General Description

SThe AD3811AD382 are hybrid operational amplifiers combining the very low input bias current advantages of a FET input stage Owith high slew rate and line driving capability of a high power Loutput stage. The offset voltage (0.2SmV maximum for the L grades) and Eoffset voltage drift (SfLV/oCmaximum .

AD382 Datasheet (2.55 MB)

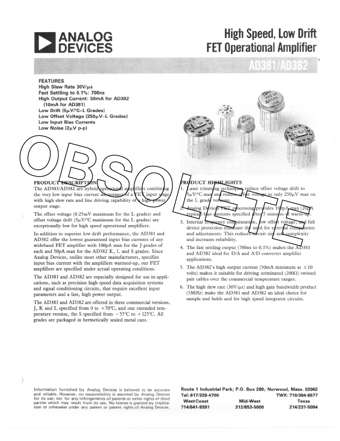

Preview of AD382 PDF

Datasheet Details

Part number:

AD382

Manufacturer:

Analog Devices ↗

File Size:

2.55 MB

Description:

High speed / low drift fet operational amplifier.
