AD4853 - 16-Bit 1MSPS DAS

Datasheet Summary

Description

Companion Products3 Specifications 4 Timing Specifications 13 Absolute Maximum Ratings18 Junction Temperature18 Thermal Resistance 18 Electrostatic Discharge (ESD) Ratings18 ESD Caution18 Pin Configuration and Function Descriptions 19 Typical Performance Characteristics 22 Terminology 29 Theory of

Features

  • Complete 16-bit data acquisition system.
  • Simultaneous sampling of 4 internally buffered channels.
  • 1MSPS per channel throughput.
  • Differential, wide common-mode range inputs.
  • ±75pA typical input leakage at 25°C.
  • Full-scale input step settling time < 300ns.
  • Integrated reference and reference buffer (4.096V).
  • Integrated supply decoupling capacitors.
  • 57mW per channel at 1MSPS, power scales with throughput.
  • Minimal external signal conditioning.
  • S.

📥 Download Datasheet

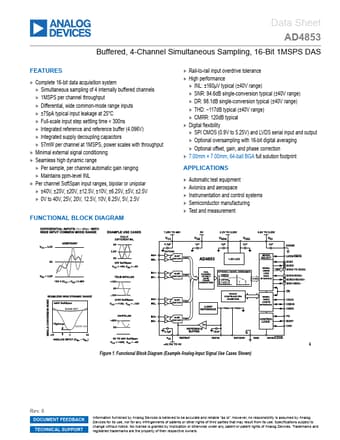

Datasheet preview – AD4853

Datasheet Details

Part number AD4853
Manufacturer Analog Devices
File Size 2.59 MB
Description 16-Bit 1MSPS DAS
Datasheet download datasheet AD4853 Datasheet
Additional preview pages of the AD4853 datasheet.
