AD4857 - 16-Bit 1 MSPS DAS

Datasheet Summary

Description

Companion Products3 Specifications 4 Timing Specifications 12 Absolute Maximum Ratings18 Junction Temperature18 Thermal Resistance 18 Electrostatic Discharge (ESD) Ratings18 ESD Caution18 Pin Configuration and Function Descriptions 19 Typical Performance Characteristics 22 Terminology 29 Theory of

Features

  • Complete 16-bit data acquisition system.
  • Simultaneous sampling of 8 internally buffered channels.
  • 1 MSPS per channel throughput.
  • Differential, wide common-mode range inputs.
  • ±75 pA typical input leakage at 25°C.
  • Full-scale input step settling time < 300 ns.
  • Integrated reference and reference buffer (4.096 V).
  • Integrated supply decoupling capacitors.
  • 45 mW per channel at 1 MSPS, power scales with throughput.
  • Minimal external signal conditioning.

📥 Download Datasheet

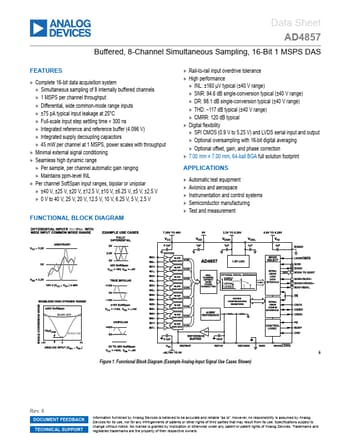

Datasheet preview – AD4857

Datasheet Details

Part number AD4857
Manufacturer Analog Devices
File Size 2.63 MB
Description 16-Bit 1 MSPS DAS
Datasheet download datasheet AD4857 Datasheet
Additional preview pages of the AD4857 datasheet.

📁 Similar Datasheet

  • AD484M1644VTA - 64Mb SDRAM (ETC)
  • AD4021 - 2A 150kHz 40V Buck DC/DC Converter (ADV)
  • AD412 - E-pHEMT MMIC (RFHIC)
  • AD42211 - 2 Form A Solid State Relay (SSO)
  • AD4C111 - Dual 1 Form ADual 1 Form A Solid State Relay (Solid State Optronic)
  • AD4C111-E - Dual 1 Form A Solid State Relay (Solid State Optronic)
  • AD4C111-L - Solid State Relay (Solid State Optronic)
  • AD4C112 - Solid State Relay (Solid State Optronic)
  • AD4C113 - Solid State Relay (Solid State Optronic)
  • AD4C211 - Solid State Relay (Solid State Optronic)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text
Data Sheet AD4857 Buffered, 8-Channel Simultaneous Sampling, 16-Bit 1 MSPS DAS FEATURES ► Complete 16-bit data acquisition system ► Simultaneous sampling of 8 internally buffered channels ► 1 MSPS per channel throughput ► Differential, wide common-mode range inputs ► ±75 pA typical input leakage at 25°C ► Full-scale input step settling time < 300 ns ► Integrated reference and reference buffer (4.096 V) ► Integrated supply decoupling capacitors ► 45 mW per channel at 1 MSPS, power scales with throughput ► Minimal external signal conditioning ► Seamless high dynamic range ► Per sample, per channel automatic gain ranging ► Maintains ppm-level INL ► Per channel SoftSpan input ranges, bipolar or unipolar ► ±40 V, ±25 V, ±20 V, ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.
