AD71056

Energy Metering

AD71056 Features

* On-chip oscillator as clock source High accuracy, supports 50 Hz/60 Hz IEC62053-21 Less than 0.1% error over a dynamic range of 500 to 1 Supplies average real power on frequency outputs (F1, F2) High frequency output (CF) calibrates and supplies instantaneous real power Logic output (REVP) indicates

AD71056 General Description

The AD71056 is a high accuracy, electrical energy metering IC with a precise oscillator circuit that serves as a clock source to the chip. The AD71056 eliminates the need for an external crystal or resonator, thus reducing the overall cost of building a meter with this IC. The chip directly interfac.

AD71056 Datasheet (335.13 KB)

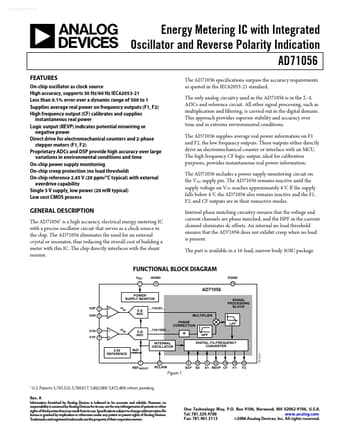

Preview of AD71056 PDF

Datasheet Details

Part number:

AD71056

Manufacturer:

Analog Devices ↗

File Size:

335.13 KB

Description:

Energy metering.
