AD7112

LC2MOS LOGDAC Dual Logarithmic D/A Converter

AD7112 Features

* Dynamic Range: 88.5 dB Resolution: 0.375 dB On-Chip Data Latches for Both DACs Four-Quadrant Multiplication +5 V Operation Pin Compatible with AD7528 Low Power APPLICATIONS Audio Attenuators Sonar Systems Function Generators LC2MOS LOGDAC Dual Logarithmic D/A Converter AD7112

* FUNCTIONAL BLOCK

AD7112 General Description

DAC A/ CS WR VIN B DAC B DGND AGND The LOGDAC® AD7112 is a monolithic dual multiplying D/A converter featuring wide dynamic range and excellent DAC-toDAC matching. Both DACs can attenuate an analog input signal over the range 0 dB to 88.5 dB in 0.375 dB steps. It is available in skinny 0.3" wide.

AD7112 Datasheet (230.05 KB)

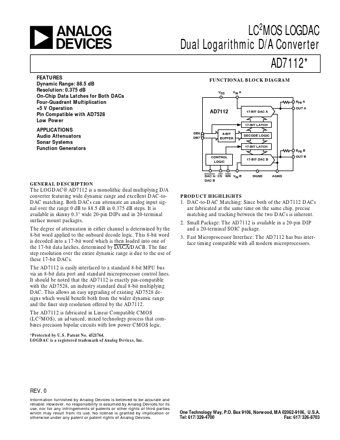

Preview of AD7112 PDF

Datasheet Details

Part number:

AD7112

Manufacturer:

Analog Devices ↗

File Size:

230.05 KB

Description:

Lc2mos logdac dual logarithmic d/a converter.
