AD7118

LOGDAC CMOS Logarithmic D/A Converter

AD7118 Features

* Dynamic Range 85.5 dB Resolution 1.5 dB Full ؎25 V Input Range Multiplying DAC Full Military Temperature Range

* 55؇ C to +125؇ C Low Distortion Low Power Consumption Latch Proof Operation (Schottky Diodes Not Required) Single 5 V to 15 V Supply APPLICATIONS Digitally Controlled AGC Systems A

AD7118 General Description

The LOGDAC® AD7118 is a CMOS multiplying D/A converter which attenuates an analog input signal over the range 0 to

*85.5 dB in 1.5 dB steps. The analog output is determined by a six-bit attenuation code applied to the digital inputs. Operating frequency range of the device is from dc to sev.

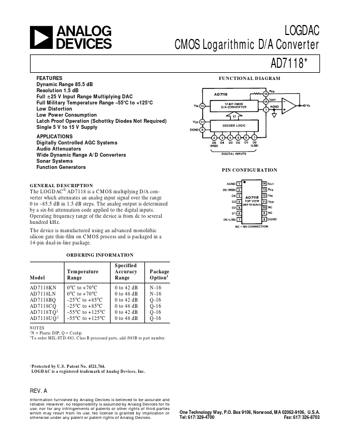

AD7118 Datasheet (197.08 KB)

Preview of AD7118 PDF

Datasheet Details

Part number:

AD7118

Manufacturer:

Analog Devices ↗

File Size:

197.08 KB

Description:

Logdac cmos logarithmic d/a converter.
