AD7170 - 12-Bit Low Power Sigma-Delta ADC

AD7170 Description

Data Sheet .
The AD7170 is a very low power 12-bit analog-to-digital converter (ADC).

AD7170 Features

* Output data rate: 125 Hz Pin-programmable power-down and reset Status function Internal clock oscillator Current: 135 µA Power supply: 2.7 V to 5.25 V
* 40°C to +105°C temperature range Package: 10-lead, 3 mm × 3 mm LFCSP INTERFACE 2-wire serial (read-only device) SPI compatible Schmitt trigg

AD7170 Applications

* Pressure measurement Industrial process control Portable instrumentation 12-Bit Low Power Sigma-Delta ADC AD7170 FUNCTIONAL BLOCK DIAGRAM GND VDD REFIN(+) REFIN(
* ) AIN(+) AIN(
* ) 12-BIT Σ-Δ ADC DOUT/RDY SCLK 08416-001 AD7170 INTERNAL CLOCK PDRST Table 1. VREF = VDD 5V 3V

📥 Download Datasheet

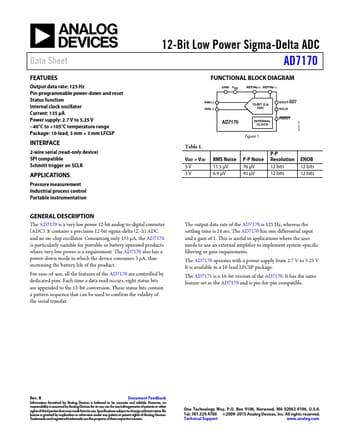

Preview of AD7170 PDF
