AD7172-2 - Sigma-Delta ADC

Description

Fast and flexible output rate: 1.25 SPS to 31.25 kSPS Channel scan data rate of 6.21 kSPS/channel (161 µs settling) Performance specifications 17.2 noise free bits at 31.25 kSPS 24 noise free bits at 5 SPS INL: ±2 ppm of FSR 85 dB rejection of 50 Hz and 60 Hz with 50 ms settling User configurable i

📥 Download Datasheet

Datasheet preview – AD7172-2

Datasheet Details

Part number AD7172-2
Manufacturer Analog Devices
File Size 1.07 MB
Description Sigma-Delta ADC
Datasheet download datasheet AD7172-2 Datasheet
Additional preview pages of the AD7172-2 datasheet.

📁 Similar Datasheet

  • AD7216N2L - AC-DC / External Freestanding Adapter (Emerson)
  • AD7315 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7318 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7325 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7328 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7330 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7333 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7336 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7344 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7350 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text

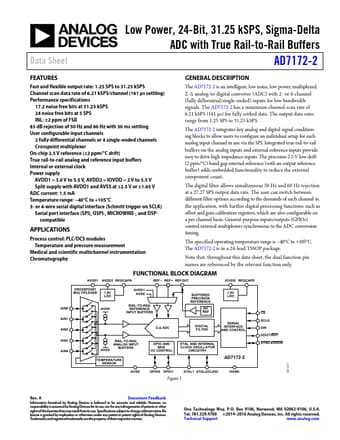

Data Sheet Low Power, 24-Bit, 31.25 kSPS, Sigma-Delta ADC with True Rail-to-Rail Buffers AD7172-2 FEATURES GENERAL DESCRIPTION Fast and flexible output rate: 1.25 SPS to 31.25 kSPS Channel scan data rate of 6.21 kSPS/channel (161 µs settling) Performance specifications 17.2 noise free bits at 31.25 kSPS 24 noise free bits at 5 SPS INL: ±2 ppm of FSR 85 dB rejection of 50 Hz and 60 Hz with 50 ms settling User configurable input channels 2 fully differential channels or 4 single-ended channels Crosspoint multiplexer On-chip 2.5 V reference (±2 ppm/°C drift) True rail-to-rail analog and reference input buffers Internal or external clock Power supply AVDD1 = 3.0 V to 5.5 V, AVDD2 = IOVDD = 2 V to 5.5 V Split supply with AVDD1 and AVSS at ±2.5 V or ±1.65 V ADC current: 1.
